20 Ton Bottle Jack
ATD-7386

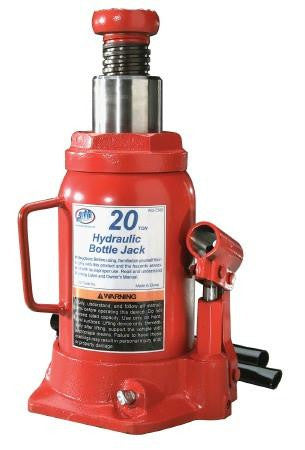

20-Ton Heavy-Duty Hydraulic Side Pump Bottle Jack
Hydraulic system is protected from internal damage by a patented bypass mechanism
Machined and polished cylinders with die-cut threads provide non-abrasive, leak-free, durable performance
Fabricated from hard-cast steel with heat-treated critical stress areas
Unique cross-type forged release valve assures positive control
A wide, rugged base provides stability and strength
Jack can be used in vertical or angled 5° from vertical position
20-Ton Heavy-Duty Hydraulic Side Pump Bottle Jack
Hydraulic system is protected from internal damage by a patented bypass mechanism
Machined and polished cylinders with die-cut threads provide non-abrasive, leak-free, durable performance
Fabricated from hard-cast steel with heat-treated critical stress areas
Unique cross-type forged release valve assures positive control
A wide, rugged base provides stability and strength
Jack can be used in vertical or angled 5° from vertical position
Capacity (Ton): 20
Minimum Height: 9-1/2""
Maximum Height: 18-5/8""
Hydraulic Lifting: 6""
Extension Screw: 3-1/8""
Base Length: 6-1/4""
Base Width: 5-7/8""
Shipping Weight: 27 lbs.
Meets ASME/ANSI-PALD Safety Standards
