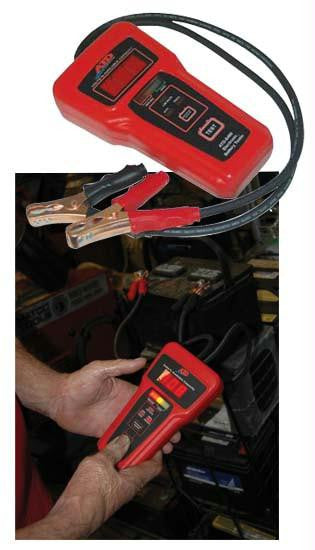

12V Electronic Battery Tester
ATD-5490
12V Electronic Battery Tester
Features a testing method that does not require the battery size to be entered into the unit
Simply choose between automotive/truck battery or small automotive type batteries for testing
Eliminates tester input errors and allows the testing of batteries of unknown size
Unit can test batteries as low as 5% state of charge and still give accurate readings
LED Bar Graph immediately displays battery condition upon pressing the TEST button
No conversion tables needed for CCA, SAE, IEC, EN, or Ah
Battery condition is shown in percent of capacity
Uses conductance technology
Tests 12V charging and starting systems
Tests both flooded lead acid and AGM batteries
Multi-colored bar graph displays battery condition
Low voltage indicator LED lights when charging is necessary
Bad cell is detected and displayed
Comfortable grip with easy-to-use clamps
Tests discharged batteries
Patented circuitry
Reverse polarity protection
Made in the USA
12V Electronic Battery Tester
Features a testing method that does not require the battery size to be entered into the unit
Simply choose between automotive/truck battery or small automotive type batteries for testing
Eliminates tester input errors and allows the testing of batteries of unknown size
Unit can test batteries as low as 5% state of charge and still give accurate readings
LED Bar Graph immediately displays battery condition upon pressing the TEST button
No conversion tables needed for CCA, SAE, IEC, EN, or Ah
Battery condition is shown in percent of capacity
Uses conductance technology
Tests 12V charging and starting systems
Tests both flooded lead acid and AGM batteries
Multi-colored bar graph displays battery condition
Low voltage indicator LED lights when charging is necessary
Bad cell is detected and displayed
Comfortable grip with easy-to-use clamps
Tests discharged batteries
Patented circuitry
Reverse polarity protection
Made in the USA
Specifications:
Battery Test Range (Auto/Truck): >390 to 1,400 CCA
Battery Test Range (Small Auto): 100 to 390 CCA
DC Voltage Range: 8V to 19.9V
Voltage Accuracy: ±2% of reading
Capacity/Volts Display: LED 2.5 digits
Bar Graph: 10 color-coded LEDs
Dimensions: 7.5"" L x 3"" W x 1"" H
Net Tool Weight: 0.75 lbs.
